LED Flasher Light Load
Equalizer for Fast Flashing LED Lights
DELUXE ALUMINUM - Model 100
ohm, 15-25 ohm, 6 ohm, and 3 ohm

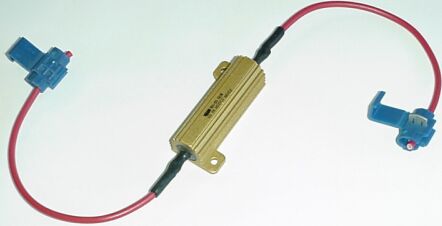

25 or 50 watt LED Load Equalizer: Corrects Most LED Related Turn
Signal Problems and bulb-out warnings for larger bulbs - Adds about
25 or 50 watts of load.
Two in front and two in rear
required, or one for each "LED" turn signal bulb.

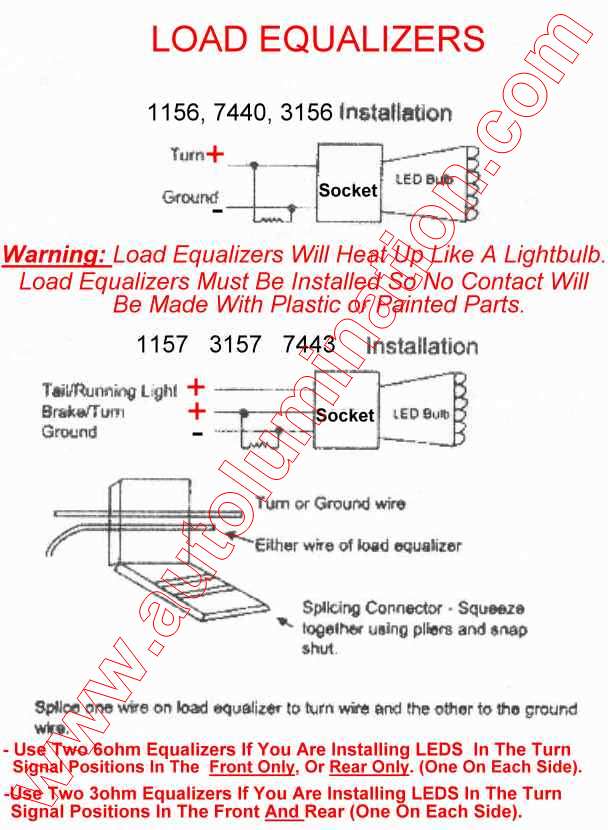

For turn signal led bulbs, the equalizer must be spliced across the
- ground wire and the + turn signal wire feeding each led
bulb. Easy Install w/ Mounting
Holes & Quick Splices
- Use TWO 6 Ohm Equalizers if your are installing LEDs in
the turn Signal positions in the FRONT. Or REAR Only (One for each
- Use TWO 3 Ohm Equalizers if your are installing LEDs
in the turn Signal positions in the FRONT AND REAR (one for
NOTE: We recommend the 50 Watt Model for most
Rated 75 watt LED
Load Equalizer (Lowers Temperature)
Rated 100 watt LED Load Equalizer (Lowers Temperature)
Note: Equalizers heat up, like a light bulb.
Install so that they do not contact plastic or painted
